EDM Song Structure: A Bar-by-Bar Map of Every Section

“…form ever follows function. This is the law.”

EDM song structure is where a lot of great loops go to die. You’ve got 8 bars that sound amazing, and you’ve played them on repeat for an hour. But you still don’t know what should come next, or how long it should last.

Below is the full map with typical bar lengths, what bars and BPM actually mean, and a fast way to copy the structure of any song you love in FL Studio. You’ll also learn how to make the drop hit harder and how to move from one section to the next without a bump. No more guessing what comes next.

What is EDM song structure?

An EDM track is a string of blocks that raise and lower the energy. The intro sets the mood. The build-up adds tension, the drop releases it, and the breakdown gives your ears a rest before the whole cycle runs again.

The energy follows a simple wave. It starts low in the intro, rises through the build-up and peaks in the drop, then falls in the breakdown before it climbs back to the top for the second drop and fades out in the outro. Sketch it and you get two big hills.

Add the sections up and you get a short version of about 3 minutes or a long, DJ-friendly version of about 6 minutes. Here are both at 128 BPM:

• Short version (96 bars, 3 minutes): intro 16, build-up 8, drop 16, breakdown 16, build-up 8, drop 16, outro 16.
• Long version (192 bars, 6 minutes): intro 32, build-up 16, drop 32, breakdown 32, build-up 16, drop 32, outro 32.

Treat these numbers as a starting point, not a rule. Tracks with vocals often add a verse, and every style bends the map a little. The quickest way to get it right for your style is to copy the layout of a track you love, which is exactly what the method further down does.

What are bars, beats and BPM?

A beat is one count of the steady pulse you tap your foot to. In house and most club EDM, the kick drum lands on every beat, which is why people call it four on the floor.

A bar (also called a measure) is a group of four beats. Count 1, 2, 3, 4 along with the kick, and every time you get back to 1, a new bar starts. In FL Studio, the numbers along the top of the Playlist are bar numbers, so counting bars is just reading those numbers.

BPM means beats per minute. It’s the speed of the song. House usually sits around 120 to 128 BPM, trance around 130 to 140, dubstep at 140 and drum and bass around 170 to 175. If house is your style, our guide on how to produce house music covers its tempo, drums and bass in more detail.

At 128 BPM, one bar lasts just under 2 seconds. That makes the math easy: 8 bars is about 15 seconds, 16 bars is about 30 seconds and 32 bars is about a minute.

Why do sections come in 8, 16 or 32 bars? DJs mix in these blocks, called phrases, and listeners feel a change coming every 8 bars, even if they’ve never counted a bar in their life. Change things on those lines and the song feels natural. Change them at bar 7 and it usually feels off.

What happens in each part of an EDM song?

Intro

The intro sets the mood with drums and one or two sounds from the song, often filtered or soaked in reverb. In a club mix it’s built for DJs: steady drums and nothing too busy, so the DJ has time to blend your track into the last one. Club intros usually run 16 to 32 bars. A streaming version can start much faster, with an intro of 8 bars or less.

Build-up

The build-up is pure tension. It usually lasts 8 or 16 bars. Producers stack a snare roll that gets faster, a riser or white-noise sweep that climbs in pitch, and a filter that slowly opens up the sound. Many pull the kick out for the last bar or two. That moment of space makes the drop hit harder. If you want to design your own risers and sweeps, start with the fundamentals of sound design.

Drop

The drop is what the song is about: full drums, the heaviest bass and the main hook, all at once, most often for 16 or 32 bars. It’s usually the loop you started with. If you already have one strong 8- or 16-bar idea, you already have your drop.

Breakdown

After the first drop, the breakdown pulls the drums out and lets the chords, melody or vocal carry the song. It’s a breather. It usually lasts 16 to 32 bars. It also makes the second drop feel big again, because your ears have had a rest.

Second drop

The second drop brings the hook back, but it shouldn’t be a straight copy. Give it a twist. Change the bass sound, add a layer, switch up the drum pattern or take something out. In the reference track mapped below, the second chorus simply drops the vocal. Small changes like that stop listeners from feeling they’ve already heard it.

Outro

The outro strips the track back down, often as a mirror image of the intro. In a club mix it gives the next DJ the same clean runway your intro gave them, so it’s usually the same length, 16 to 32 bars.

What about the verse?

Songs with a singer often add a verse between the intro and the first build-up, and again after the breakdown. The verse keeps the energy in the middle: softer drums, the vocal up front and the main hook held back for the drop.

Common EDM song structures

Most tracks you hear are a version of one of these three layouts. All lengths are in bars:

• The club layout: intro 32, build-up 16, drop 32, breakdown 32, build-up 16, drop 32, outro 32. Long, smooth intros and outros make it easy for a DJ to mix.
• The short or radio layout: intro 8 or less, build-up 8, drop 16, breakdown 16, build-up 8, drop 16, outro 8. It reaches the first drop in well under a minute.
• The vocal layout: intro 8, verse 16, build-up 8, drop 16, verse 16, build-up 8, drop 16, outro 8. It works like a pop song, with the drop taking the place of the chorus.

Some producers add a third drop or stretch the last one to twice its length. None of this is a law. As Max, the founder of Mix Elite, says of his map: “everything here would be optional of course, that’s just the guide.”

How EDM structure changes by subgenre

The basic map fits most club EDM, but every style bends it a little:

• House and tech house keep long, steady intros and outros for DJs, and often build with small changes every 8 bars instead of one giant drop. Our walkthrough on how to make a tech house track shows the groove and bass that carry those long sections.
• Trance usually has longer breakdowns and build-ups than house or techno, which gives it that slow, hypnotic rise.
• Dubstep and trap-style EDM often reach the first drop within about a minute, after a short intro and one big build-up.
• Future bass and pop-style EDM borrow from pop songs: shorter tracks, verses and choruses, and vocal chops in the drop.

How to build an EDM track from a loop

A chart tells you the usual lengths. A reference track tells you what works in your exact style. The artists you love won’t give you private lessons, but their finished songs will teach you anyway. As Max puts it, “there’s nothing wrong in learning straight from the tracks of our favorite artists.”

This is the method from Mix Elite’s arrangement video. It takes a few minutes, works in any genre, and all you need is FL Studio’s Playlist.

One thing first: decide what your loop is. If it has big drums, bass and a hook, it’s your drop, and the map will show you how to build up to it and back down. If it’s soft and moody, it may be your intro or breakdown, and the map shows you what has to come after it.

Load a reference track and match its tempo

Pick a finished song in your style that you love. If nothing comes to mind, the video suggests something from the Spotify Top 10. Its key and tempo don’t have to match your loop, since all you’re taking from it is the layout.

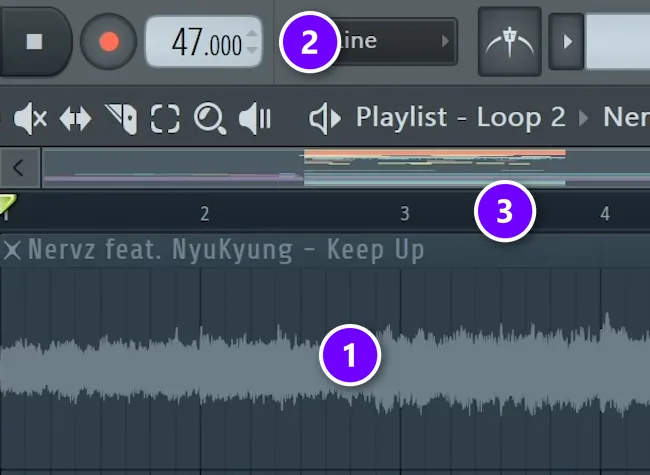

1. Drag the song into the Playlist on its own track, above your loop (1 in the screenshot).
2. Set FL Studio’s tempo box to the song’s BPM (2). If you don’t know it, search the song’s name plus “BPM”. You may halve that number, but never double it.
3. Read the bar numbers along the top of the Playlist (3). With the tempo matched, the song’s sections line up with the grid, so you can count them.
4. Solo the reference and play it from the start.

Mark each section with Alt+T

Listen for the moments the song shifts: a vocal enters, the drums vanish, the drop lands. At each one:

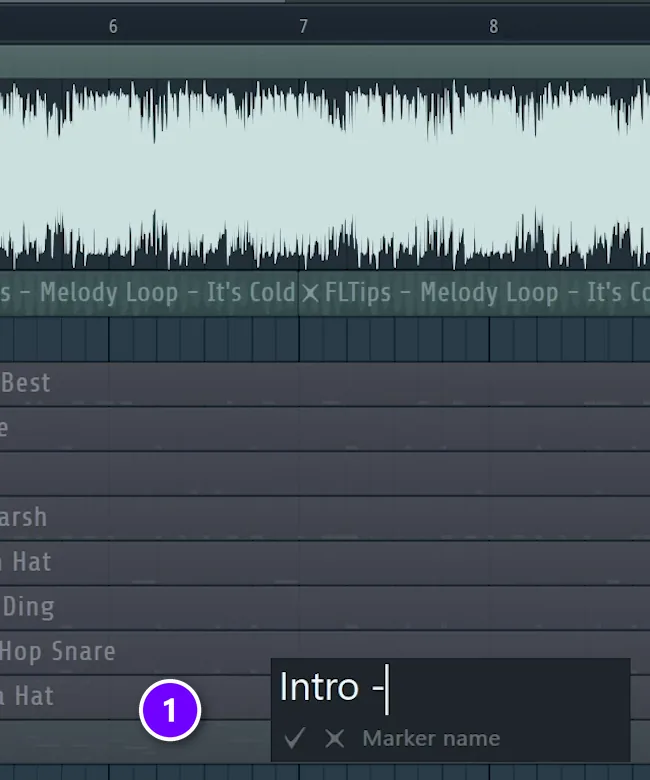

1. Put the playhead at the start of the new part and press Alt + T.
2. FL Studio drops a time marker at that spot and opens a small box for its name (1 in the screenshot). Type what you hear.
3. Click the tick and keep listening until the song ends.

What a finished map looks like

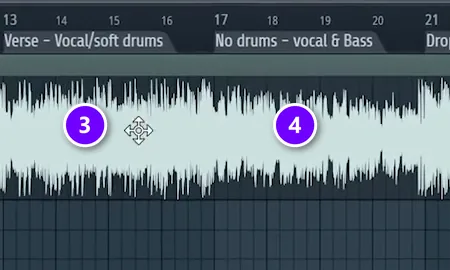

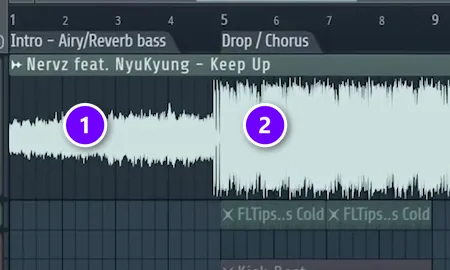

Here’s how the map from the video reads, with the numbers matching the screenshots:

1. Intro: airy, with reverb and bass.
2. Drop / Chorus: at bar 5, where everything comes in.
3. Verse: vocal and soft drums.
4. No drums: only vocal and bass, which does the job of a breakdown.

After that come a second drop without the vocal and an outro that goes back to reverb and bass. When the song ends, you have a full labeled map sitting above your Playlist. If your reference is a club track, you’ll also hear the build-ups, so give each one its own marker.

Copy your loop across the map

When the map is done, the reference has done its job. Delete it (or mute it, if it already runs at your tempo) and return the project to your own BPM. Your markers stay right where you put them.

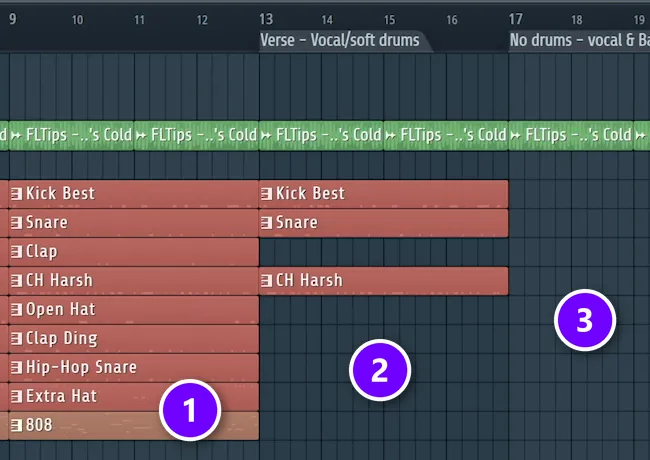

Paste your finished loop under every marker, then delete whatever each section’s label says it shouldn’t have. In the video’s project, the intro loses all its drums and keeps only the melody. The screenshot shows the middle of his map:

1. The drop keeps the full loop (1).
2. The verse keeps only the kick, the snare and a closed hi-hat for its soft drums (2).
3. The no-drums part loses every drum, so the melody carries it alone (3).

Taking parts away like this is called subtractive arrangement. Max calls it a really easy way to arrange, but he isn’t a big fan of it himself. He’d rather work the other way around, called additive arrangement: begin with a few sounds and bring in new parts as the track moves along. Either way, the map has already made the big decisions for you.

How do you make smooth transitions every 8 or 16 bars?

Mark where every new section starts. At the end of each 8- or 16-bar phrase, sweep a filter or a riser into the next part, end the old one with a drum fill or a short gap, and hit a crash on its first beat. Bring parts in and out one at a time, with fades, rather than all at once.

In the arrangement video, laying the song out against the guide takes about half an hour. The automation is where the hours go: a couple of them, spent making each section flow into the next. Automation means recording knob moves, like a volume fade or a filter sweep, so they play back on their own.

These moves do most of that work in EDM:

• A filter sweep. Slowly open a low-pass filter on the music during the build-up, so the sound gets brighter until the drop.
• A riser or noise sweep. A sound that climbs over the last 8 bars of a build tells the listener something big is coming.
• A snare roll. Go from quarter notes to eighths to sixteenths over the build, so the pace keeps speeding up.
• A gap before the drop. Cut the kick, or everything, for the last beat or bar. The silence makes the drop land harder.
• A crash or reverse cymbal. Mark the first beat of a new section, so the change sounds like it’s on purpose.
• Volume and reverb fades. Let the end of the breakdown swell, or fade the tail of the drop into the next part.

In FL Studio, you can drag sweep and crash samples from the Browser straight into the Playlist, right where a section starts. They usually come in far too loud. Double-click the clip to open its sampler and turn the volume down, then drag the fade handle at the start of the clip so the sweep fades in. That’s exactly how Mix Elite’s free 4.5-hour FL Studio course adds its transitions.

For the whole process from loop to finished, exported song, follow our guide on how to finish a song.

How do you make the drop hit harder?

Shrink the build-up, and the drop grows. Hold back the kick, filter the bass and music so they sound thin, squeeze the sound toward mono and leave a short gap, then let it all open up on the drop. To keep it from feeling repetitive, change something in the second drop.

These six moves come from Mix Elite’s free 4.5-hour FL Studio course and its future bass drop video:

1. Filter the build. In the course’s build, the bass plays alone with the claps. Put Parametric EQ 2 after the bass group’s effects and set one band to a high cut, which removes the highs. Then automate its frequency from about 20% up to fully open, right before the drop hits.
2. Wash a clap in reverb. Give the clap a reverb with a long decay. Automate the wet level to about 70% in the build, and turn it off the moment the drop lands.
3. Tease the drums. Don’t jump straight from soft to full. Bring in one drum part first, like a hat, a rim or a snare.
4. Go mono, then stereo. In the future bass video, everything plays in mono for the bar before the drop, then opens up to stereo with the crash and the full leads. It’s subtle, but it works.
5. Delay one part. Don’t start every sound on the drop’s first beat. Let one part come in a little later. The video delays the crash and the flutes.
6. Make your own fill. End the build with a drum fill you made yourself, so the moment before the drop sounds like your track and nobody else’s.

Then fight the repeats. Keep the second build-up shorter or give it a twist, and change something in the second drop: a new bass sound, an extra layer, or one part taken out, like the vocal in the reference track above. Same energy, new details.

Why does my EDM arrangement feel flat?

An arrangement feels flat when nothing changes. The same loop plays for 16 or 32 bars, every section is as full as the last, and nothing moves. Give each section its own energy level, add or remove one part every 8 bars, and automate filters and volume so the song can build and breathe.

These five habits are usually behind it:

• Everything at once. If every part plays from bar 1, there’s nothing left to bring in. Start the intro with one core sound and add something every 4 to 8 bars, the way the free course builds its intro.
• Eight bars that never change. If nothing new happens for 32 bars, the ear drifts away. Add or remove one element every 8 bars, even if it’s just a hi-hat.
• A copy-pasted second drop. Give it a new bass sound, an extra layer or a different drum fill.
• A build-up that is bigger than the drop. If every sound is already playing in the build, the drop has nowhere to go. Hold the kick and the bass back until the drop hits.
• An intro made for the wrong listener. A 32-bar intro is great for a DJ and too slow for a playlist. Decide who the version is for, or make one of each.

EDM song structure at a glance

Here’s the standard map with typical lengths, all in one place:

Section	Typical length	What happens
Intro	16–32 bars (30–60 sec)	Drums and a sound or two from the song. It gives a DJ room to mix your track in.
Build-up	8–16 bars (15–30 sec)	Tension rises. Snare rolls speed up, a filter opens and a riser climbs.
Drop	16–32 bars (30–60 sec)	The payoff: full drums, the heaviest bass and your main hook.
Breakdown	16–32 bars (30–60 sec)	The drums fall away. Chords, melody or a vocal carry the song.
Second build-up	8–16 bars (15–30 sec)	The tension comes back, often shorter or with a twist.
Second drop	16–32 bars (30–60 sec)	The hook returns with a change, so it isn’t a copy of the first.
Outro	16–32 bars (30–60 sec)	The track strips back down so the next one can come in.

Your next step is small. Pick one track you love, map it with Alt + T tonight and drop your loop into the map. A rough song on the screen will teach you more than a perfect 8-bar loop ever will.
