Home Studio Acoustic Treatment: A Simple DIY Guide

“We shape our buildings and afterwards our buildings shape us.”

You finish a mix that sounds great at your desk. Then you play it in the car, and the bass is either huge or gone. Before you blame your ears or buy another plugin, look at the room around you. Max, the founder of Mix Elite, explains what an untreated room does: all that bouncing sound builds up, “causing you to mistakenly think that your music sounds bad.”

The good news is that you don’t need a pro studio budget to fix it. This guide goes cheapest step first: what treatment actually does, what you can do for free, where panels and bass traps go, which materials work (with the makers’ own lab numbers), and how to build panels yourself.

What does acoustic treatment do in a home studio?

Sound from your speakers reaches your ears more than once. First comes the direct sound. A split second later come the copies that bounced off the walls, the desk and the ceiling. In a small room, those copies cause three common problems:

• Early reflections: bounces off nearby walls that blur detail and make the stereo picture, where each sound sits between your speakers, harder to judge.
• Flutter echo: a fast, ringing echo between two bare walls that face each other. Clap once in an empty room with bare walls and you may hear it.
• Room modes: some bass notes pile up and boom while others almost disappear, depending on the size of the room and where you sit.

Acoustic treatment fixes this in two ways. Absorbers soak sound up and turn it into a tiny bit of heat, and diffusers scatter it in many directions so no single bounce stands out. As Sound On Sound points out, the goal isn’t a dead, silent room. It’s a balanced one, where the direct sound from your speakers wins.

Signs your room needs treatment

• Your mixes sound very different in the car, on a phone or on headphones.
• The bass seems to change when you lean forward or roll your chair back a little.
• A single clap leaves a ringing, metallic echo.
• You can’t tell exactly where each sound sits between your speakers.

If that sounds familiar, the room is part of your problem.

Why do my mixes sound different in the car than in my room?

Because your room changes the bass you hear. In a small, untreated room some low notes boom at your chair while others almost vanish, so you set the bass wrong, and the car plays the mistake back to you. Bass traps in the corners tame those notes, and panels at the reflection points clear up the rest.

It works both ways. If the room boosts a bass note, you turn that note down in your mix, and in the car it’s gone. If you sit where a note cancels out, you turn it up, and the car booms. In Mix Elite’s low-end tutorial, Max explains that a room resonates right in the muddy range below about 500 Hz, and he doesn’t sugarcoat it: “So, if you’re wondering why your mix sounds so much different everywhere else, this is the reason.”

Will acoustic treatment fix it?

Mostly, yes. Treatment won’t change how your car sounds, but it stops your room from fooling you, so your mix decisions carry over to other speakers. Until your room is done, two free checks help: find and cut your room’s boomy notes in FL Studio (see below), and compare every mix on headphones, a phone and the car.

Is acoustic treatment the same as soundproofing?

No. Mixing them up is the most expensive mistake on this list. Treatment changes how your room sounds on the inside. Soundproofing stops sound from getting in or out. Sound On Sound says there’s little or no overlap between the two, and it calls foam and egg boxes “virtually useless for soundproofing.”

Blocking sound takes mass, airtight seals and keeping the walls apart from the rest of the building. The magazine’s rule of thumb shows how hard that is: double the mass of a wall and you only roughly halve the sound that gets through, and bass is the hardest part to stop. So if late-night noise is your problem, panels won’t save you. Good headphones will. Our guide to studio monitors vs headphones shows how to mix on both.

How do you plan the acoustic design of a home studio?

Start with the room and the layout, before any panels. Set up on the room’s left-right center line, keep your chair out of the exact middle of the room, and point your speakers at your ears in an equal triangle. Then treat the reflection points and the corners, and handle soundproofing as a separate job.

Where you put your desk and speakers decides how much treatment you’ll need. Mix Elite’s beginner gear video makes the point clearly: with monitors, placement matters even more than the gear itself. So start there.

Pick the right room and spot

• Avoid a perfect cube if you can. According to Sound On Sound, bass problems are worst in small, square or cube-shaped rooms, and in rooms where one side is a multiple of another.
• Center yourself between the side walls. Genelec, a studio monitor maker, recommends setting up on the room’s left-right center line, with both speakers the same distance from the side walls, so the reflections match on both sides.
• Don’t sit in the exact middle of the room. Genelec also advises against it and suggests keeping your listening spot at least 1 meter (about 3 feet) from the walls.
• Use the front of the room. For music work, Genelec puts the setup in the front third of the room.
• Try the thirds rule. Acoustic designer Andy Munro’s tip in Sound On Sound: split each room measurement into thirds and put your speakers and chair on those lines, away from the spots where bass peaks and dips are worst.
• Don’t fear the bedroom. Mix Elite’s gear video calls a bedroom a good place for a studio, because the bed, the shelves and the soft things in it already soak up and scatter sound.

Set up your speakers first

The speaker rules are short. Your head and the two speakers should form a triangle with equal sides. The speakers should be tilted toward your ears, with the tweeters (the small speakers at the top) at ear level. Genelec says the same thing with numbers: a 60-degree angle between the speakers, and the tweeters about 1.2 to 1.4 meters (4 to 4.6 feet) off the floor, which is around seated ear height.

For an average-size room, the gear video recommends 5-inch speakers, and our list of the best studio monitors has picks. If you’re still choosing the rest of your gear, our home studio setup guide walks you through it.

Start free: furniture, a mattress and a rug

Before you spend anything, use what you already have. You don’t need to hire an expert or buy pricey panels at first. Shelves full of books, sofas, carpets and mattresses all absorb and scatter a lot of sound.

1. Put a rug on a hard floor between you and your speakers.
2. Fill a bookshelf and put it on the wall behind your chair.
3. Lean a thick mattress against the wall where your room booms the most.

That last one sounds silly, but Max is serious about it: “even getting an old mattress and putting it against the wall will make a huge difference.” None of this fixes everything. It’s free, though, and it shows you what changes before you spend a cent. Mix Elite’s beginner gear video covers speakers and room treatment from 2:11:

Where should acoustic panels go in a home studio?

Start with the first reflection points. These are the spots on the side walls and ceiling where sound from each speaker bounces straight to your ears. Sound bounces off a hard, flat wall the way light bounces off a mirror, and that gives you an easy way to find them:

1. Sit in your mixing chair.
2. Have a friend slide a small mirror flat along the side wall at ear height.
3. Wherever you can see a speaker in the mirror, mark the wall. Check both speakers, because the far speaker bounces off that wall too.
4. Do the same on the other side wall and on the ceiling above the space between you and the speakers. A panel up there is called a cloud.
5. Hang a panel over each mark.

Then work outward. For bass traps, Sound On Sound suggests the front corners first, then the rear corners, then the ceiling and floor corners if you can reach them. A panel or a full bookshelf on the back wall helps stop sound from bouncing straight back at you.

You don’t need to cover every wall. In Sound On Sound’s beginner’s guide, Jorge Castro puts a typical home studio at about 30 to 40% coverage. Hang panels a little off the wall if you can, because the guide notes that an air gap behind a panel helps it work better. Cup hooks and picture wire make that easy.

Where should the first panels go if you can only afford a few?

Put the first two at the side-wall reflection points, one on each side, so both ears hear the same room. Add a cloud on the ceiling next, then thick bass traps across the front corners, then the rear corners and the back wall.

• Two panels: the left and right side-wall reflection points, at the same height, so the reflections match on both sides.
• A third panel: a cloud on the ceiling, halfway between you and the speakers.
• After that: bass traps across the front corners, then the rear corners, then a panel or a full bookshelf on the back wall.

Go thick rather than wide. As the lab numbers in the next section show, 2-inch foam soaks up only about a quarter of the bass at 125 Hz that a 3-inch stone wool batt does.

Acoustic foam vs mineral wool: which works better?

Mineral wool, as soon as bass is involved. Foam is cheap and easy to put up, but it only dampens the mid and high frequencies, like the human voice, and the low end is the hard part. Sound On Sound’s beginner’s guide says the same: in small rooms, bass is always a problem.

The makers’ lab numbers back that up. The chart shows how much of a low bass note at 125 Hz each material soaks up, from 0 (nothing) to 1.0 (nearly all of it):

Two things jump out. Thickness makes a big difference: going from 1 inch to 2 inches of the same fiberglass board takes it from 0.01 to 0.19 at 125 Hz. And thin foam barely touches bass. 2-inch Studiofoam soaks up 0.91 at 500 Hz but only 0.11 at 125 Hz.

Watch out for one number. Most stores print a single NRC (noise reduction coefficient) rating, and Auralex explains that it only averages the range from 250 to 2,000 Hz. A panel with a high NRC can still do very little for your bass.

That’s why Sound On Sound recommends dense rock wool, around 60 kg/m³ (about 3.7 pounds per cubic foot), over foam for DIY bass traps. There’s a fire-safety point too: ROCKWOOL rates its Safe’n’Sound stone wool as noncombustible. If you buy foam, check its fire rating before you cover a wall with it.

How do you build cheap DIY acoustic panels?

A cheap DIY panel is a simple wooden frame, a slab of mineral wool and some breathable fabric stretched over the front. For DIY absorbers that work across most of the range, Sound On Sound suggests semi-rigid mineral wool slabs of about 60 kg/m³, 75 mm (3 inches) thick. Hang the finished panel a little off the wall, over your reflection marks.

What you need

• Mineral wool: rigid fiberglass board or stone wool batts. ROCKWOOL Safe’n’Sound 3-inch batts come 15.25 by 47 inches (sized for 16-inch stud walls), a handy panel size.
• Wood for the frame: boards about as deep as your wool is thick.
• Breathable fabric: sound has to pass through it to reach the wool, so skip anything coated or backed with plastic.
• Tools: a saw, screws and a staple gun.
• Hanging: cup hooks and picture wire.
• Safety gear: gloves, safety glasses, a dust mask and long sleeves.

Step by step

1. Measure your wool and build a simple wooden frame that fits around it.
2. Put on your safety gear. ROCKWOOL recommends safety glasses with side shields, gloves, long sleeves, long pants and a dust mask when you cut and handle stone wool.
3. Cut the wool only if you have to. ROCKWOOL recommends a serrated insulation knife.
4. Press the wool into the frame.
5. Stretch the fabric tight over the front and staple it to the back of the frame.
6. Hang the panel on cup hooks and picture wire, a little off the wall, over your reflection marks.
7. Wash your hands in cold water afterward and put your work clothes in the wash, as ROCKWOOL advises.

How do you make DIY bass traps for the corners?

Bass traps are just thicker absorbers, placed where bass builds up the most: the corners. They need that depth because bass waves are huge. Sound travels at about 344 meters per second (HyperPhysics), so a 100 Hz bass note makes a wave about 3.4 meters (11 feet) long, while a 1,000 Hz note is only about 34 cm (13.5 inches). Short waves are easy to catch. Long ones need depth.

The simplest DIY trap is a thick panel standing across a corner, with air behind it. Sound On Sound notes that bass traps work better with that air gap too. For more bass control, go deeper with a thicker frame of wool or a second panel behind the first. Start with the front corners, then do the rear ones. The material matters as much as the depth: for bass you need very dense material like rock wool, not foam.

Do you need diffusers in a home studio?

Not at first. Diffusers scatter sound instead of soaking it up, which keeps a treated room from sounding dead, as Sound On Sound explains. They’re worth adding once your reflection points and corners are done. In a small bedroom, a full bookshelf on the back wall already does some of that job for free.

How do you treat a room for recording vocals?

Recording is a different job. A microphone hears the room too, so you want a quiet spot with as little echo as possible. In Mix Elite’s free 4.5-hour FL Studio course, the checklist is simple: no background noise, no fans or air conditioning blowing into the mic, and almost no echo. The space doesn’t have to be big. It can even be a closet.

No quiet spot like that? The course suggests a vocal booth, a small box that sits around your microphone and shields it from the room. Our vocal recording tips cover the rest of the setup.

How to find your room’s boomy notes in FL Studio

You can find your room’s worst bass spots with nothing but FL Studio. This method comes from Mix Elite’s low-end tutorial: play a sine wave, a pure single tone, through your speakers and slowly move it up through the bass. When one note suddenly gets much louder, your room is booming there. Write that note down.

1. Load a synth that plays a plain sine wave. Play one low note at a time and walk slowly up the keyboard.
2. Listen from your mixing chair, and write down the one or two notes that jump out.

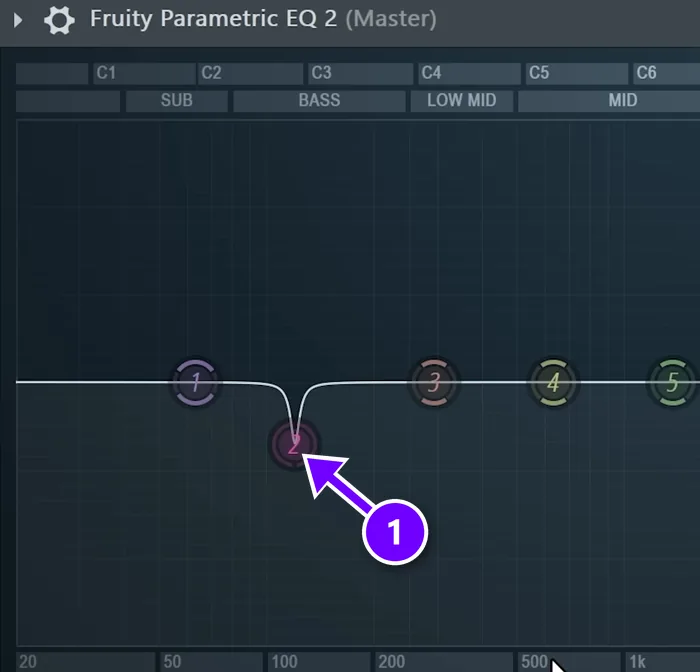

3. Put Fruity Parametric EQ 2 on the master and make a small, narrow cut at each spot (1).
4. Mix with the EQ on. Turn it off before you export, and when you work on headphones.

It’s not a replacement for treatment, but Max calls it an alternative to pro measuring systems. If you want real measurements later, the free Room EQ Wizard software and a measurement microphone are the next step. The full low-end method is in our guide to a clean, punchy low end.

Home studio acoustic treatment on a budget: the right order

Here’s the whole plan, cheapest step first:

1. Move your desk and speakers: center line, equal triangle, tweeters at ear level.
2. Add a rug, a full bookshelf and a mattress or two.
3. Hang panels at the side-wall and ceiling reflection points.
4. Put bass traps in the front corners, then in the rear corners.
5. Treat the back wall with panels or shelves, and add diffusers only if the room starts to sound dead.

After each step, play a song you know well on your speakers, then on headphones and in the car. When they start to agree, your room is telling you the truth. If you’re just getting started, our guide on how to produce music shows the whole path from first beat to finished song.
