As a music producer, I’ve spent countless hours tweaking knobs and fiddling with settings to get the perfect sound. But when it comes to compression vs. clipping vs. limiting, things can get confusing fast. These three audio processing techniques all affect dynamics, but in subtly different ways that can make or break your mix. For instance, you can adjust the input faders on a mixing desk to find a good balance between your tracks and master output. By carefully adjusting the master fader, a mix engineer can ensure that the overall volume level of their mix is appropriate and does not exceed 0 dBFS. Otherwise, this would result in unwanted distortion, also known as digital clipping.

I remember the first time I really grasped the differences. I was working on a punchy rock track, trying to get the drums to cut through without overwhelming everything else. After experimenting with various approaches, I had an “aha” moment about how compression, clipping, and limiting each shaped the sound uniquely. That experience completely changed how I approach dynamics processing, especially on individual tracks. The snare drum, in particular, tends to benefit from some light compression to make it pop through the mix.

In this guide, I’ll break down compression vs. clipping vs. limiting in plain English, with practical examples from my own mixing and mastering work. Whether you’re a bedroom producer or a seasoned pro, understanding these crucial tools will take your mixes to the next level. Let’s dive in and demystify these powerful sonic weapons.

Table Of Contents:

Understanding the Basics: Compression, Clipping, and Limiting

Before we get into the nitty-gritty, let’s start with a high-level overview of what compression, clipping, and limiting actually do:

  • Compression reduces the dynamic range of a signal by lowering the volume of loud parts.
  • Clipping cuts off signal peaks above a certain threshold, creating distortion.
  • Limiting is essentially extreme compression that prevents a signal from exceeding a set level.

While they all manage dynamics, each technique has its own distinct flavor and use cases. Let’s explore them one by one.

The Art of Compression

Compression is the Swiss Army knife of audio processing. It’s incredibly versatile, allowing you to shape the character and punch of a sound in nuanced ways. Here’s how it works:

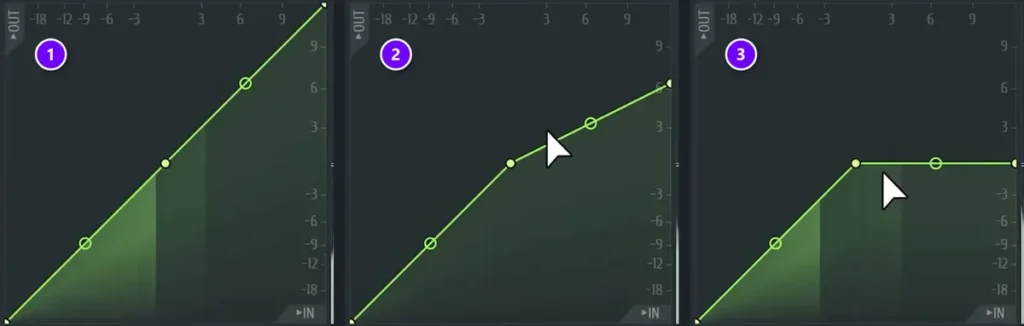

As the input signal gets louder and crosses the threshold you’ve set, the compressor starts reducing the gain. The amount of reduction is determined by the ratio. For example, a compressor with a 4:1 ratio would reduce the output by 4 dB for every 1 dB the input level exceeds the threshold. This is called the compression ratio.

This process essentially squashes the dynamic range, making loud parts quieter while leaving quieter parts untouched. The result? A more consistent volume level that can help elements sit better in a mix.

Key Compression Parameters

To truly master compression, you need to understand its key parameters:

  • Threshold: The level at which compression kicks in.
  • Ratio: How aggressively the compressor reduces gain above the threshold.
  • Attack: How quickly compression is applied once the threshold is crossed.
  • Release: How quickly compression stops after the signal falls below the threshold.
  • Knee: How gradually compression is applied around the threshold.

By tweaking these settings, you can dramatically alter how compression affects your sound. Fast attack and release times with a high ratio can add punch to drums, while slower settings can smooth out vocals or bass.

Creative Compression Techniques

One of my favorite compression tricks is parallel compression, sometimes referred to as New York compression. Here’s how it works:

  1. Duplicate your drum track.
  2. Apply heavy compression to the duplicate.
  3. Blend the compressed version with the original.

This technique gives you the best of both worlds – the punch and consistency of compressed drums, with the natural dynamics of the original. You’ll achieve a punchy, larger-than-life drum sound that still retains its natural dynamics and transients.

The Edge of Clipping

While often viewed as the enemy of clean audio, clipping can actually be a powerful creative tool when used intentionally. Unlike compression, which reduces gain above a threshold, clipping straight-up cuts off the peaks of a waveform. You may want to add a pre limiter/compressor before the clipper in your signal chain to prevent unwanted clipping from occurring.

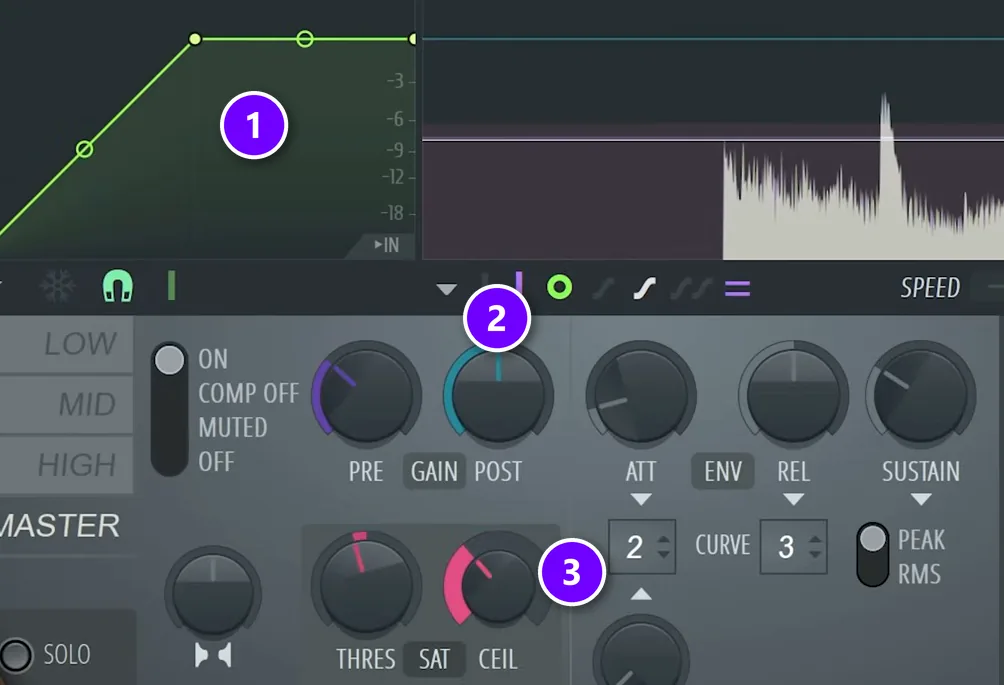

This creates distortion by introducing new harmonics into the signal. In the digital realm, this results in harsh, brittle distortion. But in analog gear (or digital emulations), soft clipping can add pleasant warmth and grit. Be careful with clipping as it is easy to overdo it.

Types of Clipping

There are two main flavors of clipping:

  • Hard Clipping: Abruptly cuts off peaks, creating sharp edges in the waveform.

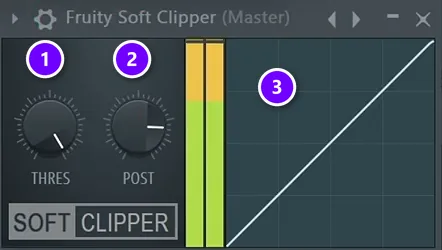

  • Soft Clipping: Gradually rounds off peaks, producing a smoother, more musical distortion.

In my experience, soft clipping is generally more useful for subtle saturation and “glue” in a mix. Hard clipping can work for aggressive sounds or as a creative effect, but use it sparingly.

Creative Clipping Applications

Here are some ways I’ve successfully used clipping in my mixes:

  • Drum Transient Shaping: Gentle clipping can tame harsh drum transients while adding punch.
  • Bass Enhancement: Soft clipping can fatten up bass sounds with rich harmonics, especially on bass guitar.
  • Mix Bus “Glue”: A touch of analog-style soft clipping can add cohesion to a full mix.

When it comes to clipping plugins, I’ve had great results with Kazrog KClip for character on individual tracks and buses. For more transparent clipping, SIR StandardCLIP is my go-to. You can also achieve great results using software limiters, but it will take more tweaking.

The Power of Limiting

Think of limiting as compression’s more aggressive cousin. While standard compression allows some overshoot above the threshold, limiting aims to create a “brick wall” that the signal cannot exceed.

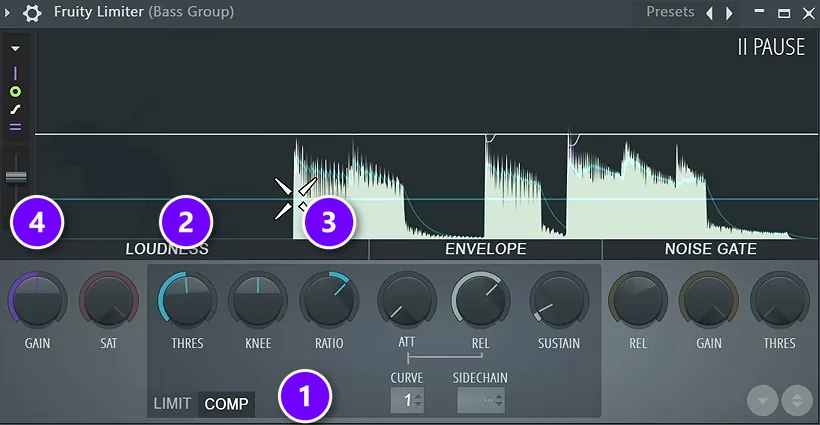

Limiters typically use very high ratios (often infinity:1) and extremely fast attack times. This makes them ideal for catching brief transient peaks or maximizing overall loudness without introducing obvious distortion. A fast attack ensures that the limiter kicks in quickly to catch the peaks, while a slightly slower release prevents any unwanted artifacts and allows the audio to breathe naturally. This makes it a very versatile tool for both novice mixers and seasoned mastering engineers alike.

Key Limiter Parameters

Most limiters have fewer controls than compressors, but understanding them is crucial:

  • Threshold/Ceiling: The maximum output level.
  • Input Gain: Drives the signal into the limiter, allowing you to increase the overall perceived loudness of the audio. It’s like pushing the limiter harder without changing the threshold.
  • Release: How quickly gain reduction stops after peaks, influencing the overall smoothness and impact of the limited audio.
  • Lookahead: Allows the limiter to anticipate peaks (introduces latency), but this comes at the cost of introducing a small amount of delay to the audio signal, which might not be suitable for certain applications. However, it can result in a more transparent limiting effect, as the limiter has more time to process the incoming signal. You will often see this setting referred to as a mastering compressor-limiter.

Limiting Techniques

Here are some ways I apply limiting in my mixes and masters:

  • Taming Peaks: Use a limiter with a fast release to catch stray transients without affecting the overall dynamics.
  • Maximizing Loudness: Drive a limiter harder for competitive loudness, being careful not to overdo it and cause distortion. You don’t want to sacrifice dynamic range for loudness.
  • Bus Processing: Gentle limiting on drum or vocal buses can add cohesion, making them sound tighter and more glued together.

For most limiting tasks, I rely on DMG Audio Limitless. Its flexibility and transparent sound make it my go-to for both mixing and mastering. When applied to the master bus, you’re essentially controlling the final output of your entire mix.

Compression vs. Clipping vs. Limiting: Choosing the Right Tool

Now that we’ve explored each technique, let’s compare them directly to help you choose the right tool for the job:

Technique Best For Sound Character Potential Drawbacks
Compression Shaping dynamics, adding punch, controlling levels. Can range from transparent to colored, depending on settings. Overuse can lead to lifeless, squashed sound.
Clipping Adding grit, taming harsh transients, creating distortion effects. Adds harmonics, can range from subtle warmth to aggressive distortion. Easy to overdo, can introduce unwanted harshness.
Limiting Maximizing loudness, catching peaks, creating a “ceiling.” Generally more transparent than compression or clipping. Heavy limiting can lead to pumping or distortion.

Remember, there’s no one-size-fits-all solution. The key is understanding how each tool affects your audio and choosing the right technique (or combination) for your specific needs. Consider using a combination of compression and limiting in your mastering chain to achieve a more polished and professional sound.

Practical Workflow Tips

When approaching compression vs. clipping vs. limiting in your mixes, consider these workflow tips:

  1. Start with gain staging: Properly manage levels throughout your signal chain before applying any processing. This ensures that you have enough headroom to work with and prevents any unwanted distortion from occurring early on in the mixing process.
  2. Use compression first: Shape the overall dynamics and character of your sounds. You can also apply compression on the master output for an extra layer of control.
  3. Apply clipping judiciously: Use it for color or to tame specific transients, not as your main tool for dynamics control.
  4. Save limiting for last: Use it as a final stage to maximize loudness and catch any remaining peaks. It is usually placed at the very end of your mastering chain to achieve the loudest possible signal without clipping.

Always trust your ears and don’t be afraid to experiment. Sometimes breaking the “rules” leads to the most creative results.

FAQs about Compression vs. Clipping vs. Limiting

What is the difference between clipping and limiting?

Clipping cuts off signal peaks abruptly, introducing distortion, while limiting uses extreme compression to prevent signals from exceeding a threshold. Limiting aims to be more transparent, while clipping can be used for creative distortion effects.

What is the difference between compression and limiting?

Compression reduces dynamic range more gradually, shaping the overall character of a sound. Limiting is essentially extreme compression with very fast attack times, designed to create a “ceiling” that the signal cannot exceed. It is a crucial tool during the mastering stage to increase the perceived loudness without introducing distortion.

Should I clip before or after limiter?

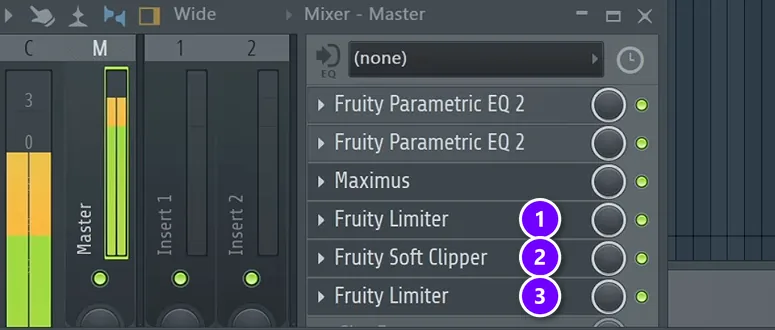

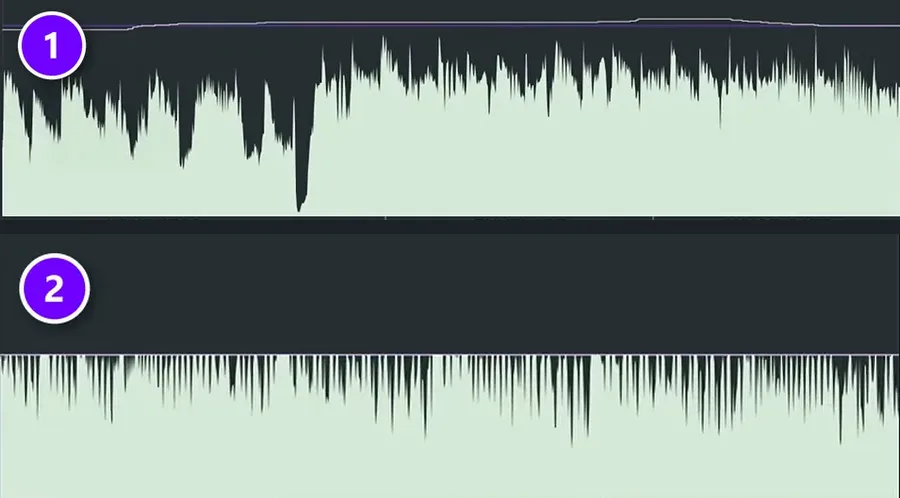

Generally, it’s best to clip before limiting. This allows you to shape the sound with clipping, then use the limiter as a final safety net to catch any remaining peaks. However, experiment with both orders to see what works best for your specific material.

Why use a clipper instead of a limiter?

Clippers can add desirable harmonic content and help maintain transient snap in a way that limiters sometimes cannot. They’re often used on drums or for creative distortion effects where the added color is beneficial. Experiment with different types of clippers, such as soft clippers and hard clippers, to understand how they interact with the audio signal.

Conclusion

Understanding the differences between compression, clipping, and limiting is crucial for mastering your mix and achieving a polished, professional sound. Each technique has its unique applications and benefits, and knowing when and how to use them can make all the difference in your music production.
